Custom Telecom Plate Data Modules

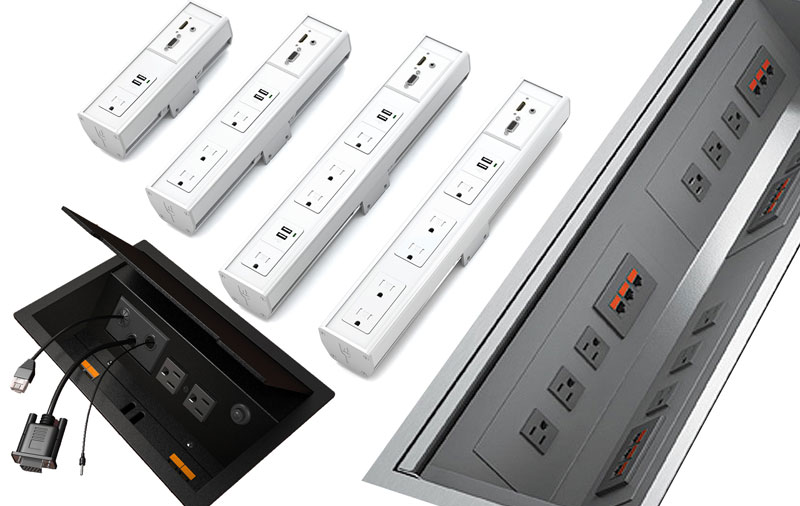

Custom telecom plate data modules allow our customers to pick and choose which telecom connectors they require for installation in their desktop power data stations. They are proprietary and designed to fit into any ECA power solution that includes a telecom plate cutout. Each plate is fully customizable allowing customers to choose the perfect combination of data, USB, or audio visual connectors to best accommodate each application’s individual needs. Customers with existing units and existing telecom plates can swap them out at a later time as their needs change.
RJ45 cat 6 Data Connector
2 RJ45 cat 6 Data Connectors
3 RJ45 cat 6 Data Connectors
4 RJ45 cat 6 Data Connectors
2 RJ45 Cat 6 Connectors and HDMI Female/Female with 36" patch cord attached

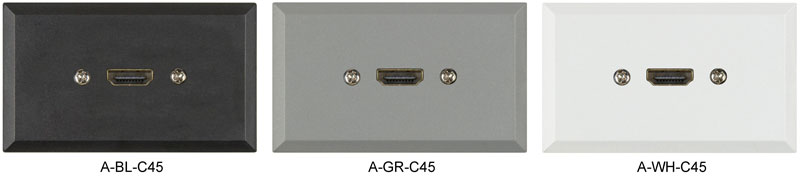

HDMI Female/Female with 36" patch cord attached

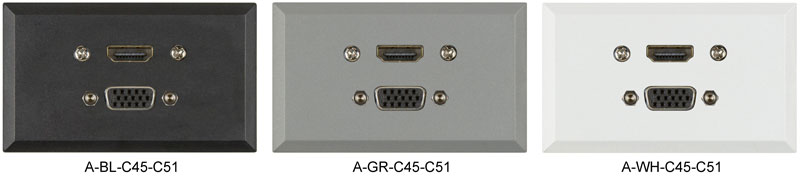

HDMI Female/Female with 36" patch cord attached and 15 Pin HD VGA Female/Female with 60" patch cord attached
HDMI Female/Female with 36" patch cord attached, Mini Stereo Inline, and 15 Pin HD VGA Female/Female with 60" patch cord attached
RJ11 Cat 3 Phone and RJ45 Cat 6 Data Connectors

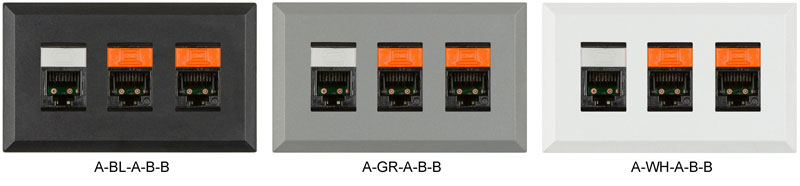

1-RJ11 Cat 3 Phone and 2-RJ45 Cat 6 Data Connectors
RJ11 Cat 3 Phone, RJ45 Cat 6 Data, and USB with 72" patch cord attached

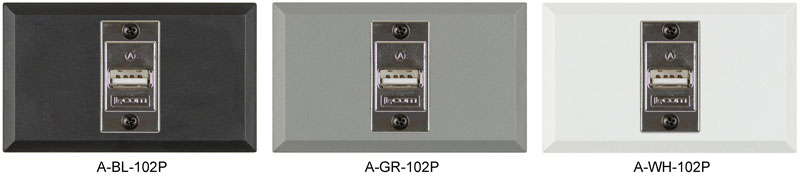

USB Type A/A with 72" patch cords attached

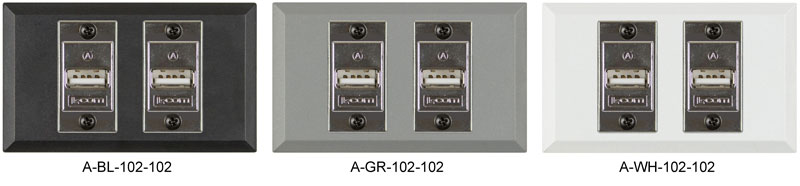

2 USB Type A/A with 72" patch cords attached

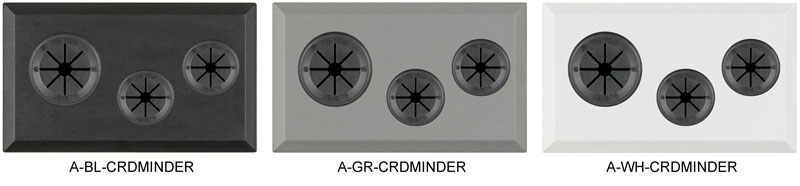

Cordminder Plate with Two 5/8" Holes and One 7/9" Hole
Powered USB Charging Port (USB rating 2100 mA 5V/DC)
2 Powered USB Charging Ports (USB rating 2100 mA 5V/DC)
RJ CONNECTORS: The most popular RJ connectors are the RJ-45 cat6, used for data transfers and computer networking, and the RJ-11 cat3, used for hardwired phone connections. Both the RJ-45 and RJ-11 are available in a punchdown or inline version.
A/V CONNECTORS: While there are many types of A/V connectors, the most popular are: VGA, HDMI, and Mini Stereo. Other less common types include RCA and Fiber Optic connectors. These connectors are available in Inline versions that allow them to be easily integrated into applications with the use of a patch cord.
USB CONNECTORS: USB connectors are becoming increasingly popular as they are used with cell phones, tablets, as well as other portable or mobile devices. ECA’s standard connector has an attached patch cord with male end for ease of installation. Upgraded 3.0 versions are also offered which transfer data from the source at a faster speed. An optional USB transformer plugs into a standard wall outlet as an easy alternative solution for USB charging applications.
